Clay That Holds Impossible Shapes, One Maker’s Pressurized 3D Printer Extruder Unlocks Pottery No Wheel Could Ever Form

Joshua Bird spent years tinkering with motion systems and material delivery before he landed on a setup that treats clay like a precise, buildable medium rather than something that slumps or cracks at every turn. The result is a working printer that produces double-walled cups, organic climbing-hold textures, and even delicate chainmail-style meshes in fired ceramic. These pieces carry internal structures and overhangs that traditional throwing or hand-building methods struggle to achieve without molds, supports, or constant risk of collapse.

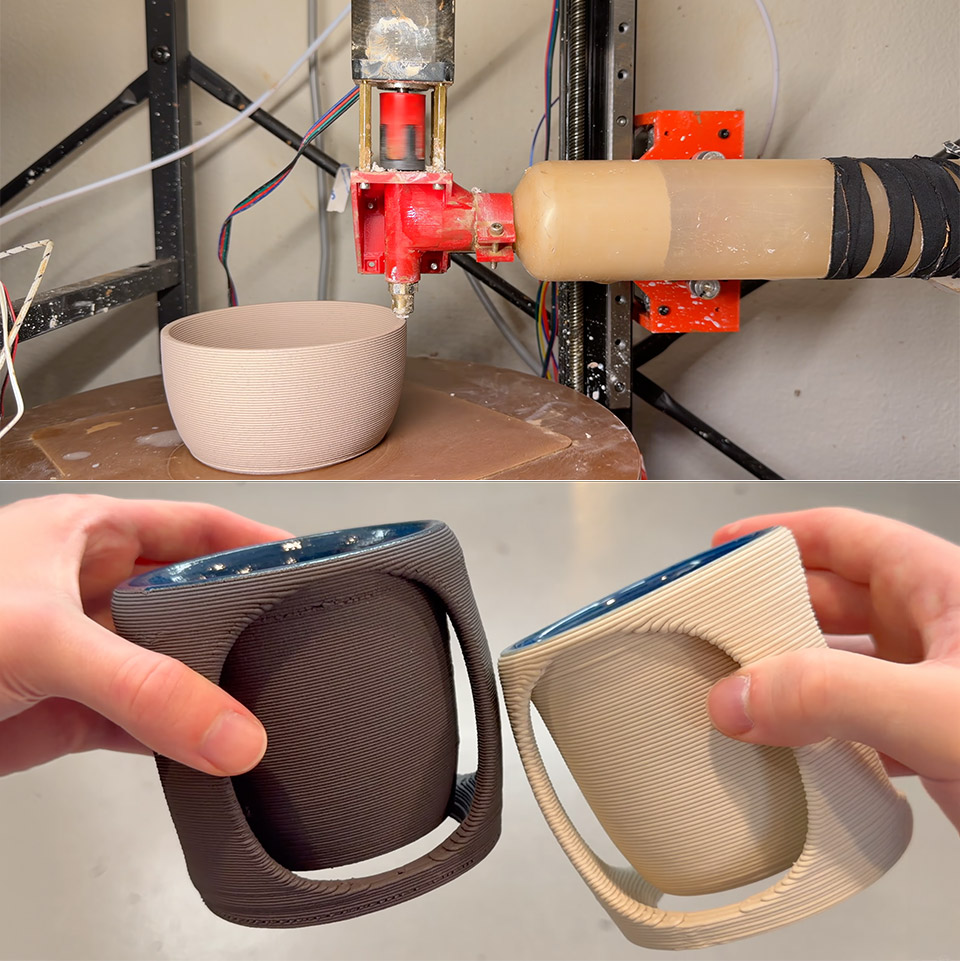

Pressure handles the heavy lifting, with a modest air compressor propelling clay out of a tube and into the extruder. Inside the extruder, there’s an auger that dispenses just the right amount of clay through the nozzle, and a tiny gap at the top lets out any trapped air, which is a pretty important detail because it keeps the flow nice and steady and makes retraction much more reliable: no more strings or gaps when the machine starts and stops. With the pressure keeping things moving, you don’t have to worry about clay combinations becoming too rigid; they still operate perfectly.

The older models of the extruder tended to break quickly since the clay slurry is a horrible mess, like liquid sandpaper with microscopic abrasive particles causing all sorts of issues, and the plastic augers only lasted an hour. Switching to stainless steel parts made with a selective laser sintering service, together with titanium augers, resolved the entire durability issue. Even after multiple prints, stainless steel pieces can endure abrasive dirt.

A four-axis polar motion platform is at the heart of this beast, moving the extruder in such a way that a rotating nozzle can follow curved trajectories and deposit material on both inner and outer surfaces with ease; there is no fighting gravity here. Furthermore, non-planar toolpaths make it easier to use minimal supports, which are already difficult to remove from wet clay. The entire motion system is made of very common materials, including aluminum extrusions, linear rails, and a few printed components, making it accessible to anyone willing to put in the effort to construct and calibrate it.

The results speak for themselves, as a double-walled cup has an inner chamber that maintains the exterior surface warm even when it’s holding searing hot beverage, while also keeping your hands comfortable. A climbing-themed cup features textured grips shaped like rock holds, which were produced from photos and converted into printable geometry, as doing this by hand would be a nightmare. Chainmail meshes appear layer by layer, with each link connected but remaining nice and open, something that would take hours or even days to complete by hand without breaking all of the vulnerable bits.

Cost-wise, it’s not too bad, given that the motion platform and extruder use nothing more complicated than standard supplier parts and a basic compressor. The design files are publicly available on GitHub, allowing you to evaluate the auger geometry, pressure chamber, and polar kinematics and do whatever you want with them. Bird has also stated that he is exploring using this method to medical-grade ceramic implants, where the internal complexity and specific patient requirements are significantly more important than merely making a few pieces of pottery.
