This iPod Classic Mod Kit Makes Modern Upgrades Feel Almost Effortless

Old iPod Classics still draw people in with their click wheel, physical buttons, and the simple joy of a dedicated music player that never pushes notifications or drains itself on background apps. The hardware holds up surprisingly well decades later, yet the original design shows its age in daily use. Proprietary cables, failing hard drives, and no easy way to connect wireless headphones turn what should feel timeless into something that requires workarounds.

Tito from Macho Nacho Productions embarks on an ambitious quest to make a completely upgraded 5th Generation iPod Classic using the Moonlit Market Classic Connect 2 kit, and he takes us through every step of the process. The final product appears to be straight out of the past, with its vintage interface and respectable sound signature, but then you realize all of the modern technologies that have been added, such as Bluetooth, USB-C, wireless charging, haptic feedback, and a larger battery. What stands out is how simple this build is in comparison to past custom projects. The kit is mostly assembled, making life much easier. It contains a frosted translucent replacement back shell pre-fitted with the larger battery, wireless charging coil, and main board that handles Bluetooth 5.2 and the haptic motor, as well as a tube of B7000 glue to finish the process. Tito uses it with an iM Cory SD card converter board and a microSD card for storage, discarding the old spinning hard drive because it will not fit with the new one.

Opening the iPod requires some pressure from tiny plastic tools to remove the front and back parts without harming the plastic. Tito disconnects the battery and drive connections before removing the old hard drive. He swiftly cuts the small plastic clip above the screen to create space for the new board. The SD adapter is then inserted into the drive bay and connected to its own ribbon.

The Moonlit board is then attached to the iPod’s main circuit board with a few extra connections. Tito gives it a quick test run before using the B7000 adhesive to keep everything together. He runs into a couple of minor snags along the way, both of which are easily fixed, as he replaces his microSD card with one that the adapter prefers and fixes a dead ribbon on the haptic feedback by reseating the connection and reactivating the vibration motor. These little obstacles highlight how straightforward this method is, as no soldering or specialized electronics knowledge is necessary.

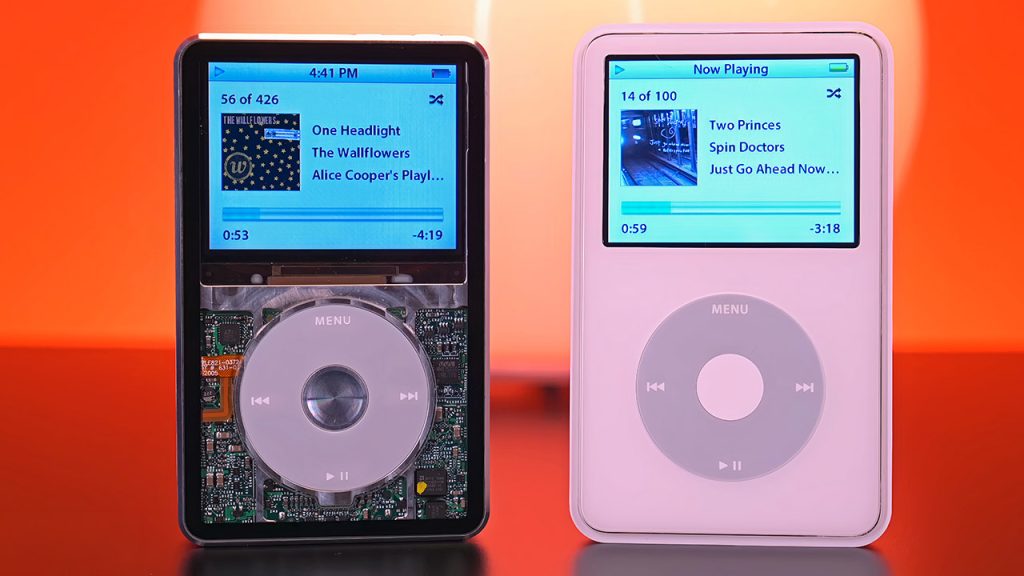

When the adhesive has entirely cured, the finished player feels complete. Bluetooth connectivity works easily with any AirPods or existing headphones, and higher-quality codecs do an outstanding job of preserving fine sound detail, which is frequently lost with basic wireless connections. The USB-C connector supports both charging and file transfers via a single interface, eliminating the need for cords.

Even better, you can just place it on a wireless charging pad and it will charge automatically. The haptic feedback adds a pleasant light touch to each click wheel turn and button press, offering some of the tactile input that the original mechanical design did. The new battery cell hidden beneath the new shell delivers much longer runtime. Tito compares the finished product to the Boxy Pixel aluminum-and-glass kit he showed in an earlier video. The Moonlit option foregoes the luxury machining in favor of a much simpler installation and a few more functions from the start, such as wireless charging and haptics. The translucent frosted surface gives the player a unique appearance while yet feeling like an iPod and not an entirely other device.
